Model

Description

Notes

Price Order

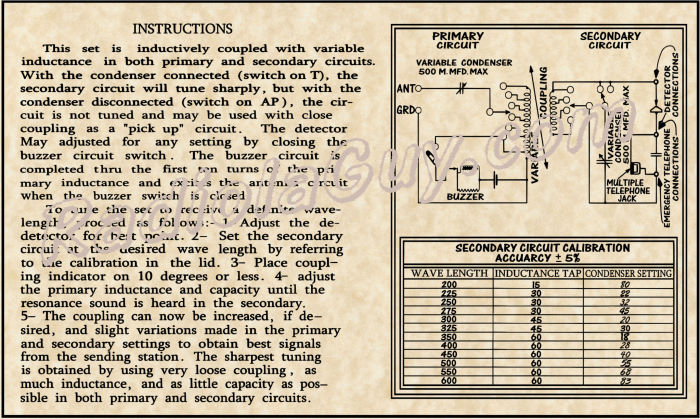

General Radio BC-14A

 lid label instructions
< click on links
Re-Mastered reprint (blue color, like original) $16.00
OZ-1 See Navy OZ-1
Zenith R-520/URR
Military Transoceanic
<< click link to order service & instruction manual
Military AN/USM-3 test-tool set (electronic test set with TV-4A/U tube tester) complete technicians' handbook as supplied with this wonderful small electronic test set. Includes basic tube tester operation instructions.

      TUBE TEST DATA IS NOT INCLUDED IN THIS MANUAL. SEE TV-4 manual below
Re-Mastered reprint, comb bound, 5.5 x 8.5"  over 100 pages $44.00
Military TV-2/U
tube tester
Simplified and improved basic operation instructions Single page

Free hard copy with purchase of any other TV-2 manual

PDF File Only purchased alone $12.00
Military TV-2/U
tube tester
Supplemental and misc tube test set-up data dated 1966  - includes VT (military numbers) & ballast. DOES NOT INCLUDE the EARLY LARGE PIN TYPES Re-Mastered reprint, comb bound 32 pages $25.00
Military TV-2/U
tube tester
Comprehensive, tube test set-up data. Includes tubes from the 1920's through the '60's including Western Electric types and many small transmitting tubes. Re-Mastered reprint, comb bound, 86 pages

$40.00
Military TV-2/U
tube tester
Field Depot Maintenance Manual TM 11-6625-316-35. Includes my painstakingly re-mastered, large fold-out, very readable schematic with resistor and capacitor values noted. Re-Mastered reprint, comb bound, more than 60 pages $30.00
Military TV-3/B/U
tube tester
Comprehensive manual - instructions, operation, maintenance, trouble shooting, parts lists. & obsolete tube data Re-Mastered reprint, comb bound,  120 pages $40.00
Military TV-4A/U
tube tester
Tube Tester step by step tube testing procedure, detailed operator instructions and tube test data




Re-Mastered reprint  detailed operator instructions only  comb bound, 5.5 x 8.5" $25.00
Re-Mastered reprint of the tube test data only in book form, comb bound, 5.5 x 8.5" $25.00
Both of the above combined into one book $40.00
Schematic - If one of the above manual is purchased $8.00
Schematic Only (Available in PDF < click for info $18.00
Military TV-4A/U
tube tester
tube test data chart that's ring mounted on the tester this will be expensive to reproduce. I can do it several ways including the book form (above) - Inquire for a quote
Military TV-7A/B/D/U
tube tester

TB-11-6625-274 1962  Replacement Set-up Data Card Set for the loose leaf ring binder updated, Re-Mastered reprint 5.5 x 7" loose leaf, off white, card stock paper, 90 pages, hole-punched. $44.00
OPTION; same as above but done on 24# plain white paper with off white, cardstock covers. $30.00
Military TV-7A/B/D/U
tube tester

TB-11-6625-274 1962 Comprehensive Set-Up Data  in book form Re-Mastered reprint  90 pages 8.5 x 11" comb bound $28.00
Military TV-7A/B/D/U
tube tester

Field Depot Maintenance Manual includes calibration info
TM-11-6625-274-35
comb bound Re-Mastered reprint 8.5 x 11" includes all three versions of the schematic. over 50 pages $35.00
Military TV-7A/B/D/U
tube tester

Operators Instructions & Installation manual  TM-11-6625-274-12 high quality, comb bound Re-Mastered reprint  48 pages NO SCHEMATICS $30.00
Military TV-7A/B/D/U
tube tester

Calibration instructions INCLUDED in the Field Depot Maintenance Manual.
Military TV-10 A/U & D/U
tube tester
Technical manual, NAVSHIPS Operation & maintenance manual with parts list, schematics and obsolete tube test set-up charts included clear, clean, crisp schematics, no fuzzy stuff here. Re-Mastered reprint,  comb bound, more than 80 pages dated Oct 1957 w/changes pages dated 1962 improved photos, nice clear schematics (3) with parts values $35.00
Lid chart (basic instructions) Re-Mastered reprint of Lid Chart heavy paper, add to above $10.00 select options when ordering
Purchase Lid Chart separately $20.00
Navy OZ-1
tube tester
Operators Instructions & Installation manual with parts list & schematic Re-Mastered reprint comb bound, 20 pages $25.00
NAVSHIPS MX-1258/U Instruction Book for Tube Socket adaptor Kit  MX-1258/U INCLUDES A LOT of TUBE BASE DIAGRAMS OF MILITARY AND SPECIAL TUBES that are NOT FOUND ELSEWHERE Re-Mastered reprint,  comb bound, about 50 pages dated November, 1952 $25.00
Signal Corps
I-177/A/B
tube tester
maintenance & service manual TM11-2627 w/schematics comb bound Re-Mastered reprint 8.5 x 11"
includes all three versions of the schematic.
$30.00
Signal Corps
I-177/A/B
tube tester
comprehensive tube test data, (TB 11-2627-2) dated 1952 in book form 68 pages comb bound Re-Mastered reprint  68 pages 8.5 x 11" $28.00
Signal Corps
I-177/A/B
tube tester
same data as above but high a quality reproduction of the loose leaf cards that fit into the ring binder in the lid Re-Mastered reprint 5.5 x 7" loose leaf, off white, card stock paper. 68 pages, hole-punched. $44.00
OPTION; same as above but done on 24# plain white paper in 8.5 x 11" book form with off white, cardstock covers. $30.00
Test equipment manuals: B&K : EICO : HEATHKIT : HICKOK : KNIGHT : MILITARY : PRECISION : SENCORE : SIMPSON : WESTERN ELECTRIC : MISCELLANEOUS
